Pelleting
Pelleting is a process widely used in the feed and livestock industry in which mixed feed in mash form is converted into pellets by mechanical compression in combination with heat and moisture.
Benefits of pelleting
- Ease of handling
- Lese wastage of feed
- Reduced selective feeding
- Destruction of pathogenic organism
- Improves FCR(Feed Conversion Ratio)

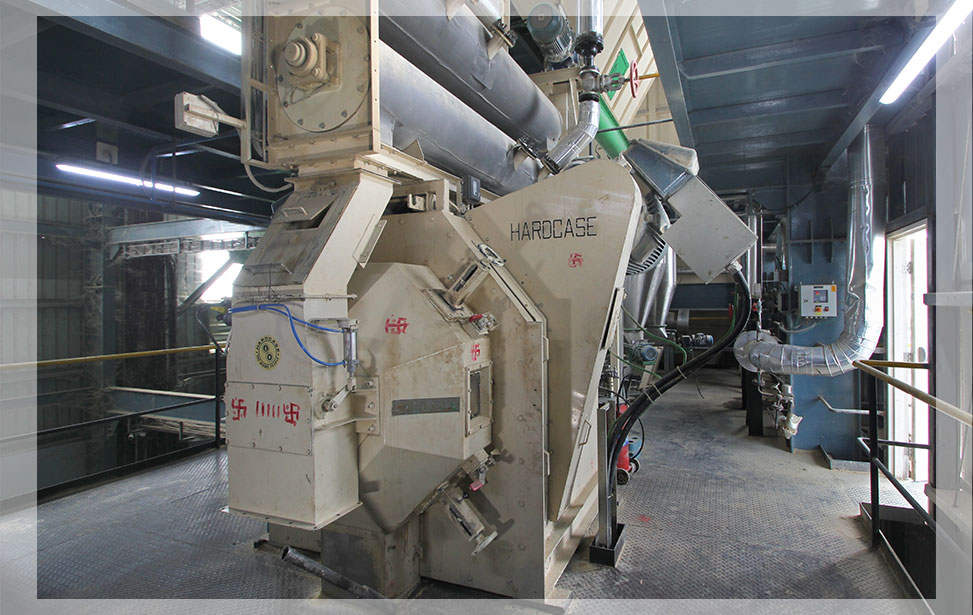

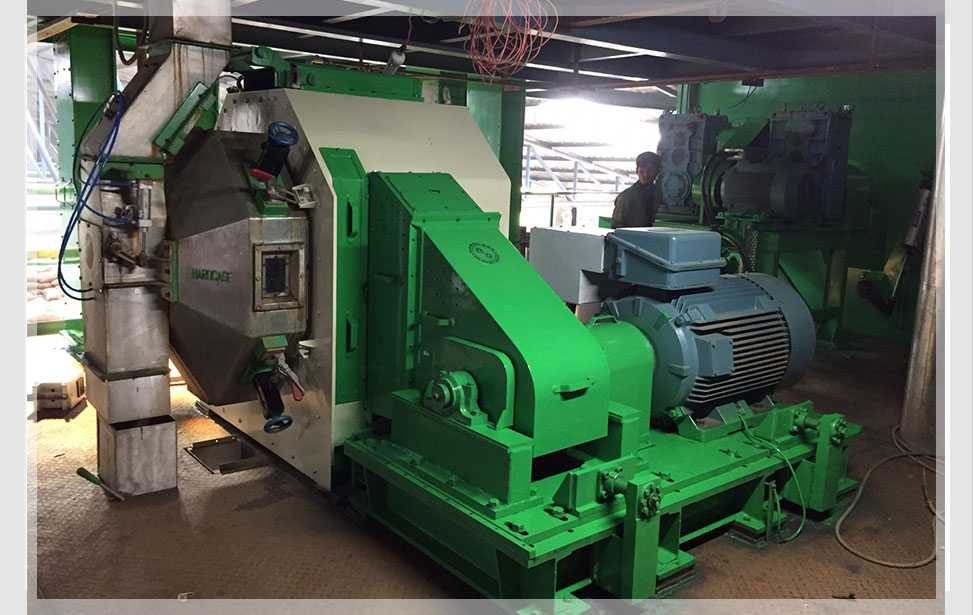

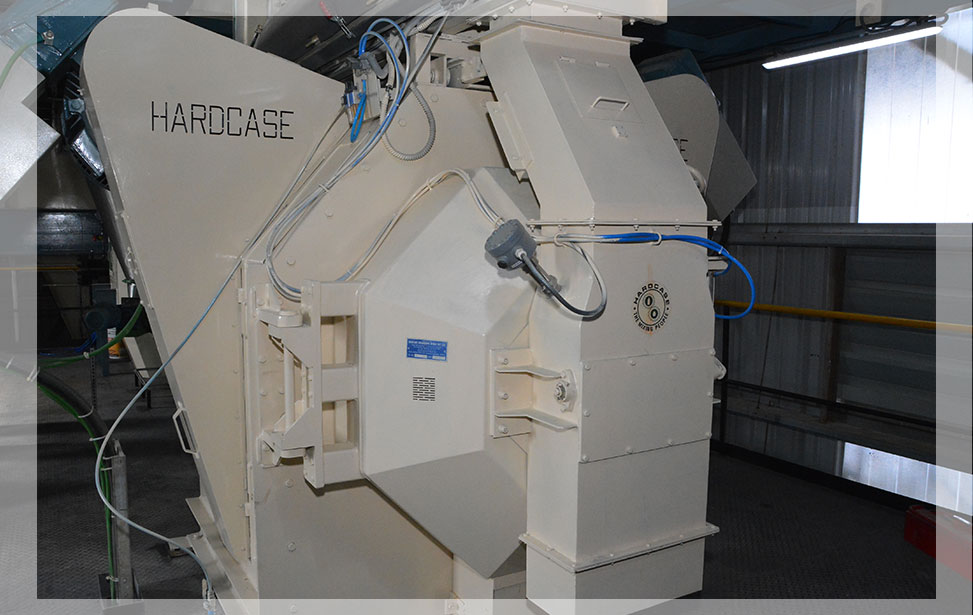

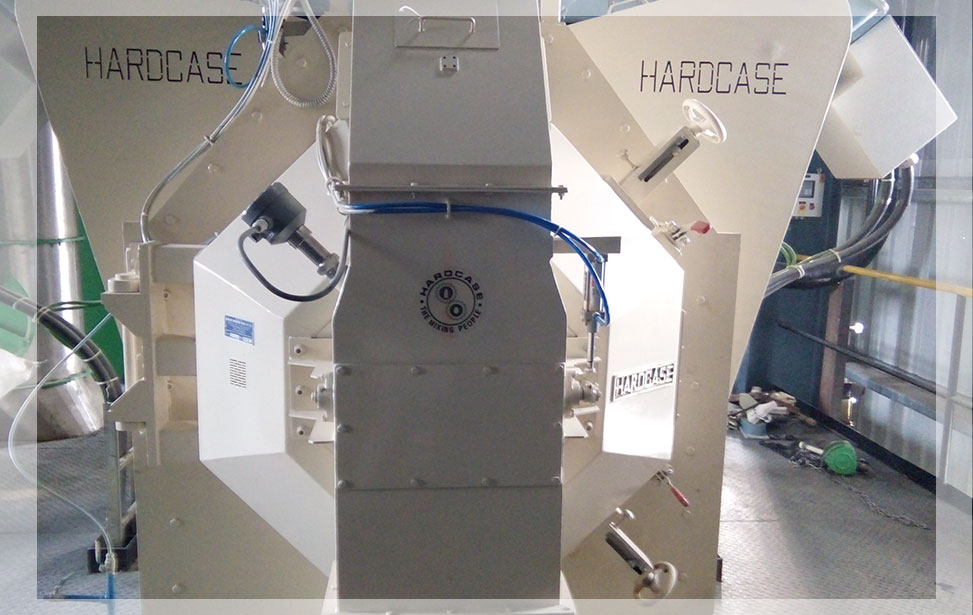

Product Photos
Features of Pellet Mill
- V-belt drive protects the pellet mill from severe shock loads
- Rollers in wear resistant alloy steel and die in chromium steel or Alloy steel
- Taper Die Fit for models HPM 320, 420, 580 and 700.
- Cylindrical Die fit for HPM 520 model
- Large Die Area
- Shear pin assembly to protect the main shaft against damage from overload
- Magnetic separator at inlet to protect from any ferrous material entering the machine
- Automatically controlled greasing system does the ideal amount of lubricant to the main bearings ensuring longer life.
- Arrangement for easy and safe Die change and maintenance
Pellet Mill Models
| S.no | Model | Effective Width | Die Inside Dia | Die Area | Roller Dia. | Roller Width | Drive | Capacity* |
|---|---|---|---|---|---|---|---|---|
| 1 | HPM 320/84 | 84 mm | 320 mm | 845sq.cms | 150mm | 87mm | 50-75 HP (37.5-55 KW) | 1.5 to 2 tons/hours |
| 2 | HPM 420/114 | 108 mm 114 mm | 420 mm | 1424/1503sq.cms | 200mm | 112mm | 100-120 HP (75-90 KW) | 4 to 5 tons/hours |
| 3 | HPM 520/138 | 138 mm | 520 mm | 2255sq.cms | 250mm | 130mm | 120-150 HP (90-110 KW) | 6 to 7 tons/hour |
| 4 | HPM 520/178 | 178 mm | 520 mm | 2908sq.cms | 265mm | 170mm | 180-220 HP (135-160 KW) | 9 to 10 tons/hour |
| 5 | HPM 580/197 | 197 mm | 580 mm | 3590sq.cms | 265mm | 200mm | 220-250 HP (160-180 KW) | 10 to 12 tons/hour |
| 6 | HPM 700/250 | 250 mm | 700 mm | 5495sq.cms | 320mm | 254mm | 375/180 HP X 2nos. (280/135 KW X 2nos) | 16 to 20 tons/hour |
* Capacity is based on Standard Broiler feed formulation on 3mm Dia Die
